IntelliSTIM BE-28T Digital TENS Machine

By : Categories : Comment: Comments Off

Deluxe Dual Channel 11 mode Digital TENS.

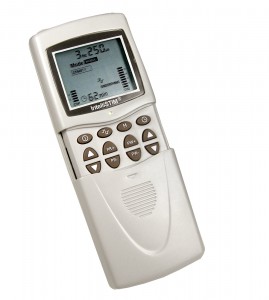

The IntelliSTIM BE28T Digital TENS Machine is a high end TENS machine. This state of the art machine has been specially developed to give optimum pain relief.  While the BE-28T is unrivalled in the many features offered it remains easy to operate and is ideal for both physician and patient.


  • 11 modes
  • Acute and Chronic Pain Protocols
  • Unique IntelliSTIM feature
  • Intuitive operation
  • Dual intensity independent channels
  • Three selectable waveform options
  • Large push buttons – ideal for those with poor dexterity
  • Large LCD display
  • Memory function – automatic last used program on Start
  • High output – maxmimum amplitude of 130mA – ideal for patients with severe pain
  • Low battery indicator – flashing symbol indicates low battery
  • Count down timer with power saving automatic shut off
  • Accumulative recording of treatment time
  • Electrode protection circuit
  • Belt clip
  • 2 year guarantee


  • Constant 1 – endorphin release
  • Constant 2 – endorphin release
  • Constant 3 – gate control
  • Burst 1 – endorphin release
  • Burst 2 – endorphin release
  • Burst 3 – endorphin release
  • Modulation SW – endorphin release
  • Modulation 2F – gate control


Preset Programs

  • Modulation SW – endorphin/gate control
  • Acute Pain – sequence of 3 preset programs optimised to treat acute pain
  • Chronic Pain – sequence of 3 preset programs optimised to treat chronic pain


Technical Specifications:


2 alkaline batteries 1.5v AA (LR6)


Maximum 130 mA across 500 Ohm load

Pulse Width:

From 50ms to 250ms adjustable in steps of 10ms

Pulse rate:

From 1Hz to 150Hz


- Symmetrical Bi-phasic rectangular
- Asymmetrical Bi-phasic rectangular
- Mono-phasic rectangular.


138mm x 68mm x 28mm

Treatment Timer:

Continuous, 15min, 30min, 45min, 60min, 90min.


160g (including batteries)


IntelliSTIM BE-28T Pack includes

TENS unit, soft carry case, 4 pack of electrodes, 2 lead wires, 2 AA alkaline batteries and instruction manual.
